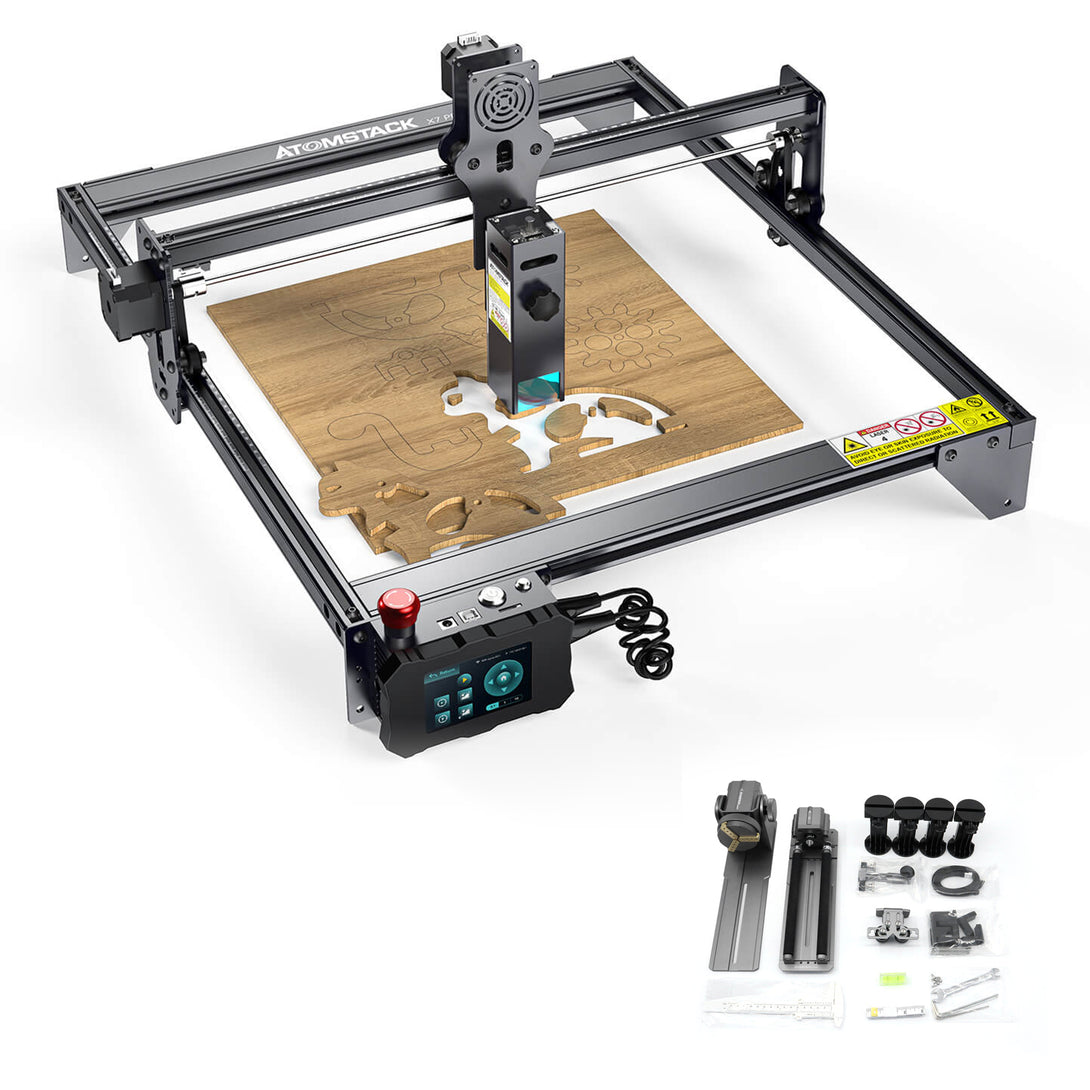

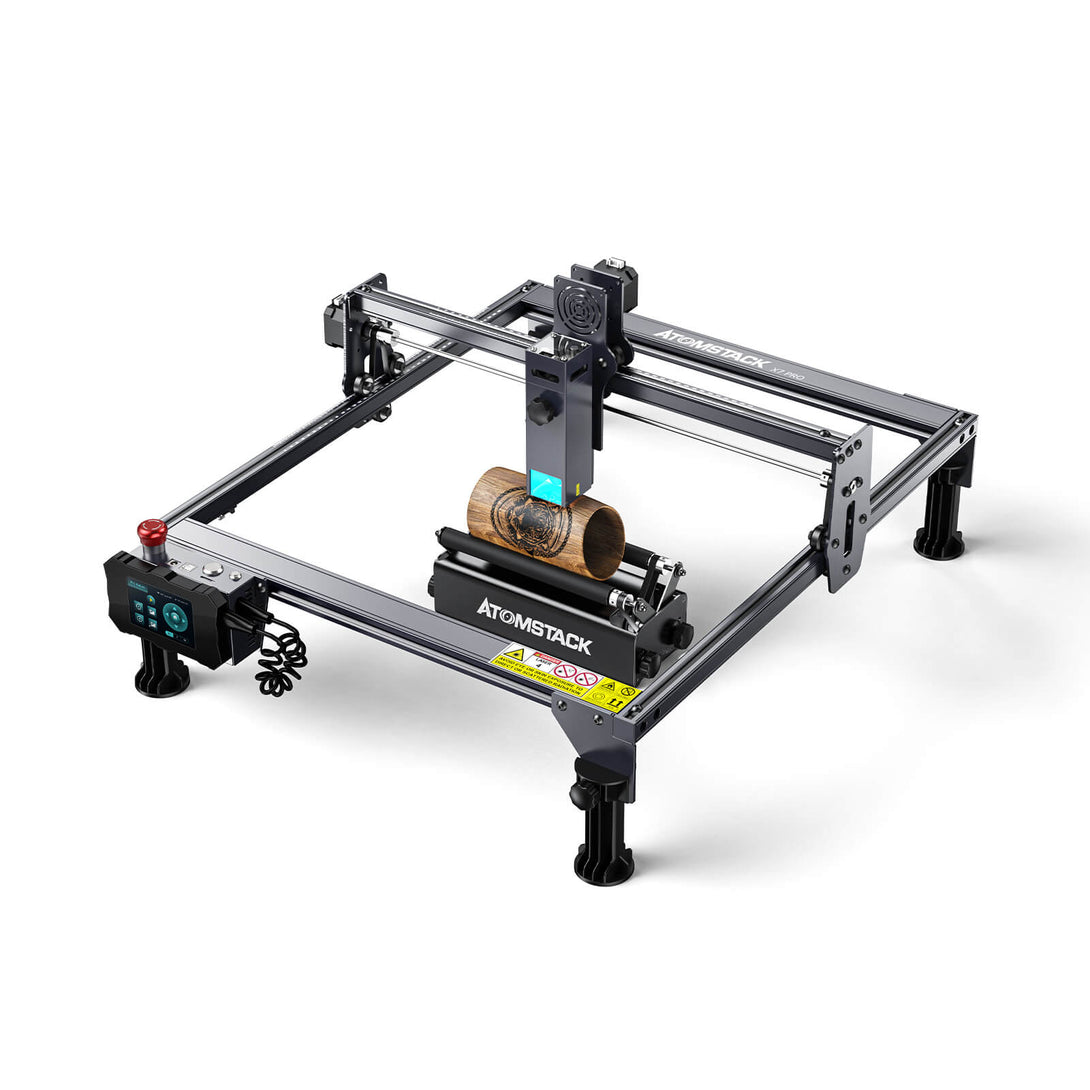

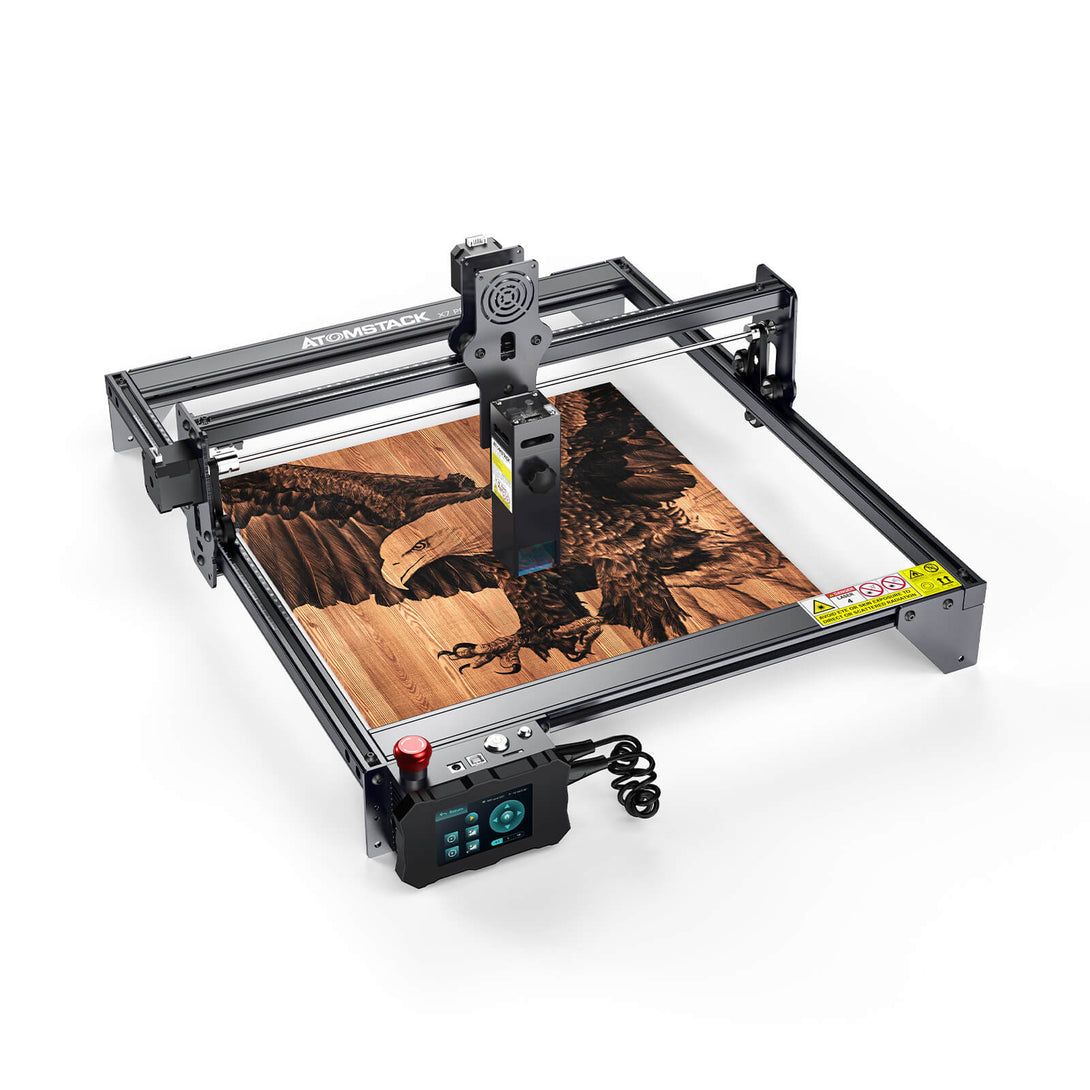

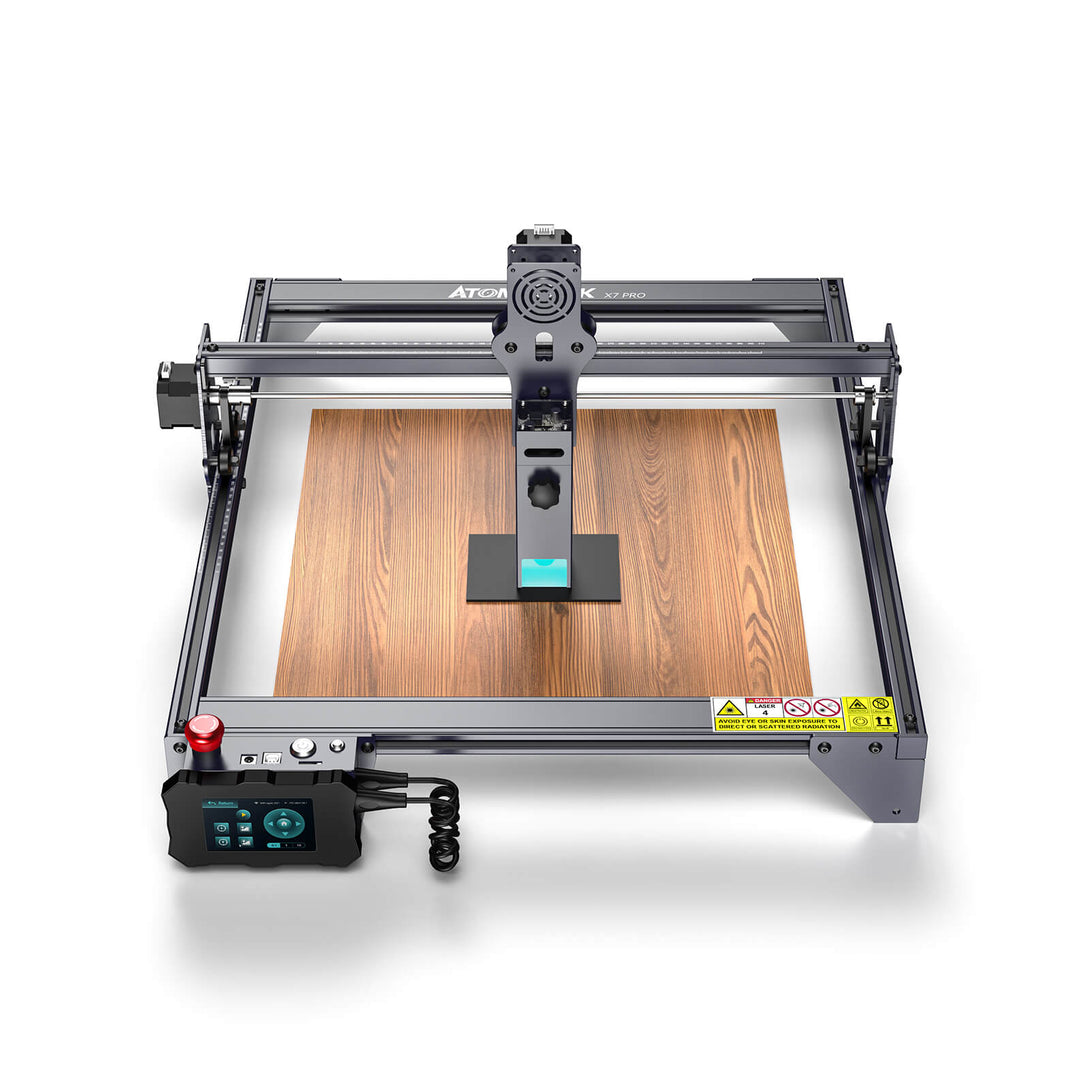

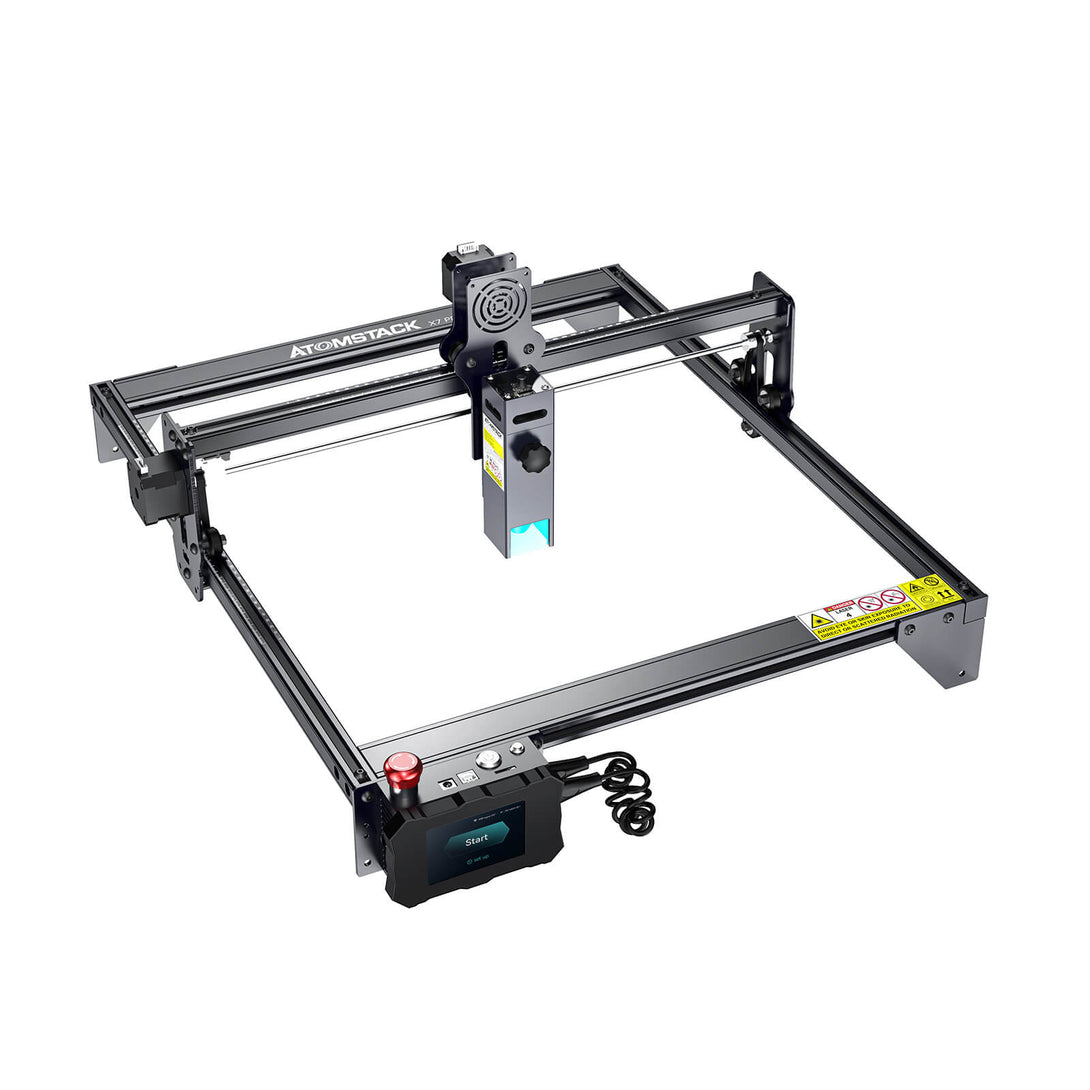

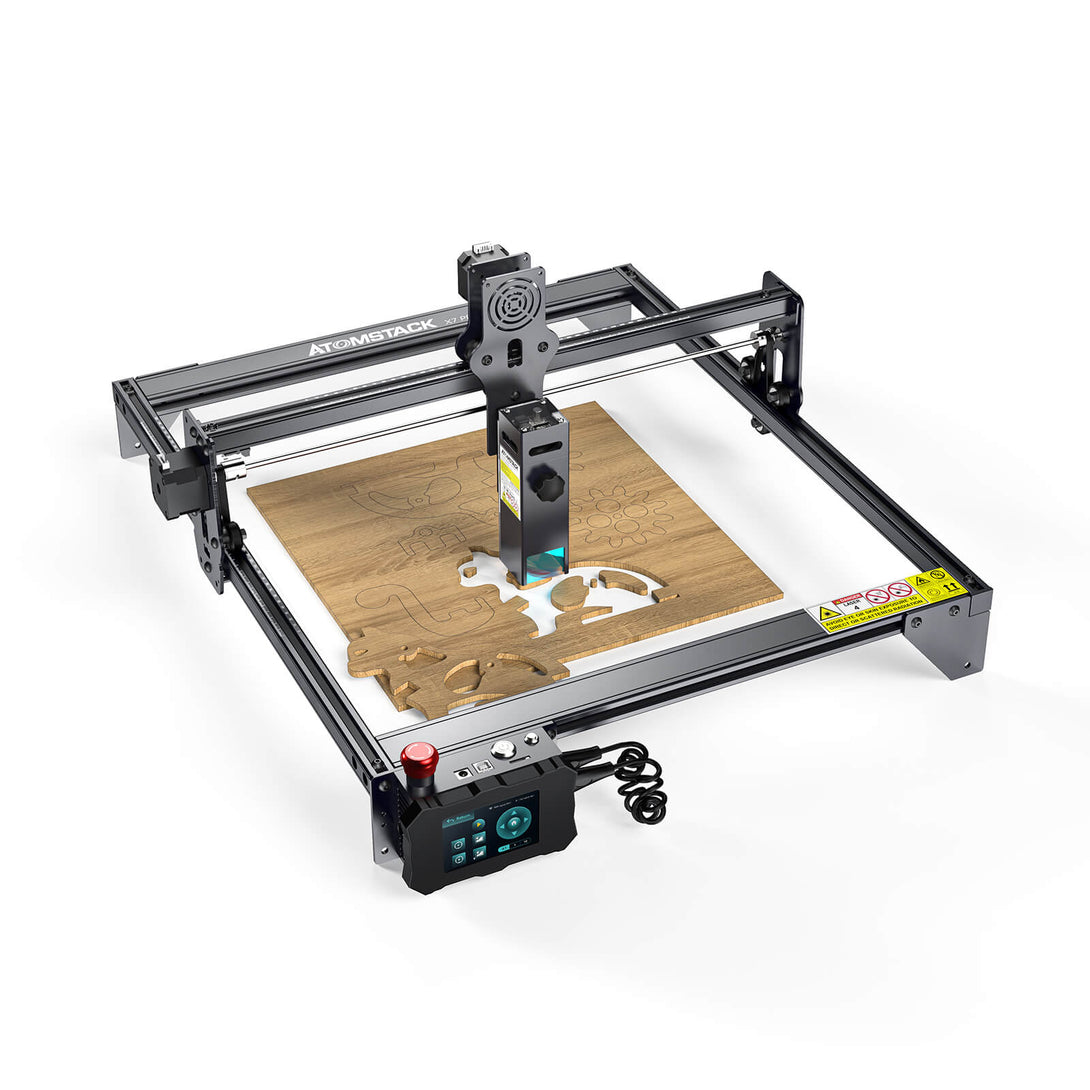

Atomstack X7 Pro 50W Laser Cutting Machine + R1 PRO Multi-function Chuck Rotary

This product link is for a combination of SKUs: Atomstack X7 Pro 50W Cutter & Engraving Machine + R1 PRO Multi-function Chuck Rotary

Makes Everyone a Master Crafter

ATOMSTACK X7 PRO is an eye-protecting laser engraving machine with a laser power of 10W. It has an engraving area of 410x400mm and an all-aluminum alloy structure, which can be installed quickly. X7 Pro supports engraving materials including metal, 304 mirror stainless steel, high-energy wood, CNC, wood, slate, etc. It is a high-power, high-energy laser cutting equipment, and supports offline engraving. X7 Pro has an emergency stop button and a horizontal gyroscope, so that it can achieve a safe 150W CO₂ laser engraving effect.

Main Features:

1. The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles.

2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

4. Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 / Win 11, and also support MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

6. Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

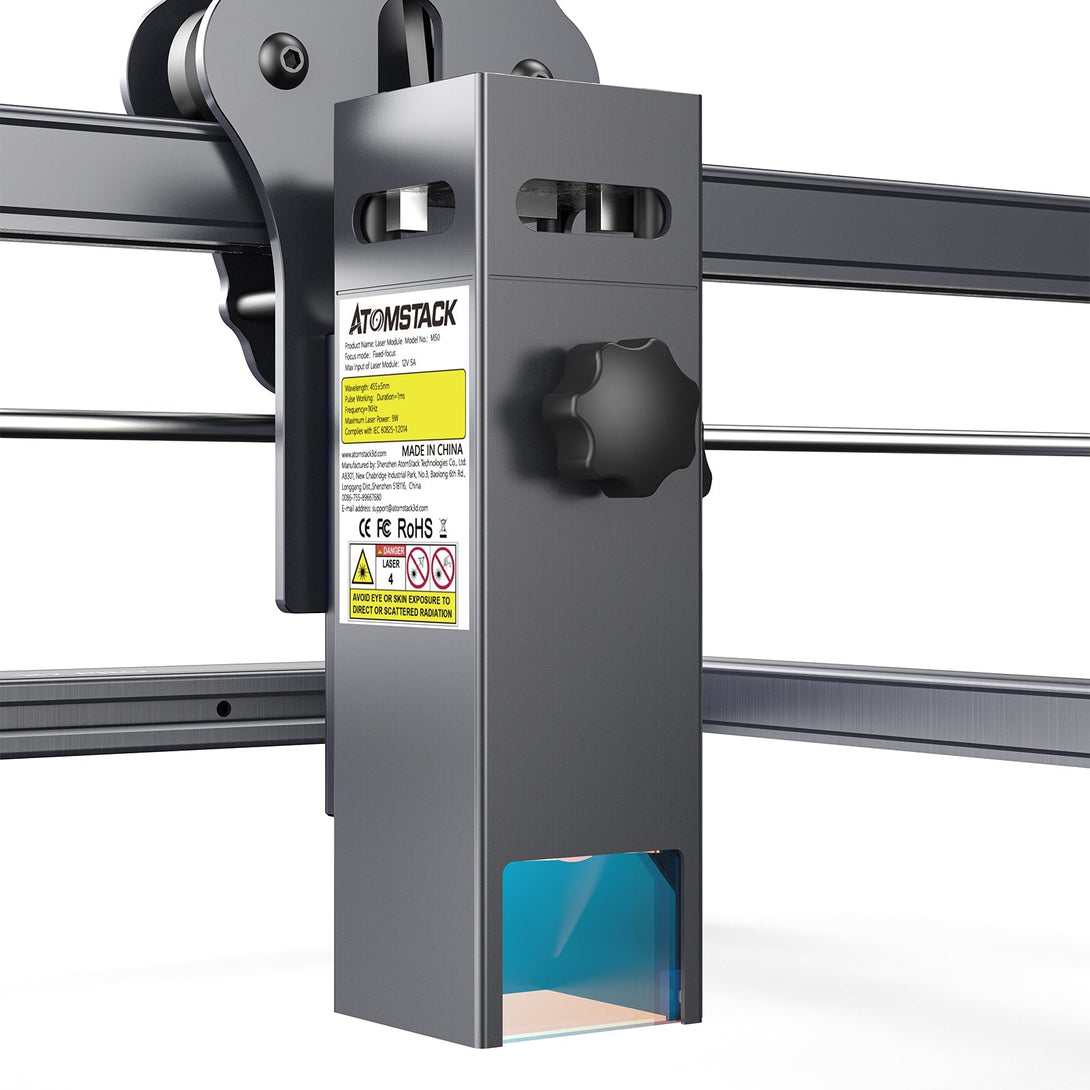

8. New laser with knob: It is more convenient and quick to adjust the height of the laser.

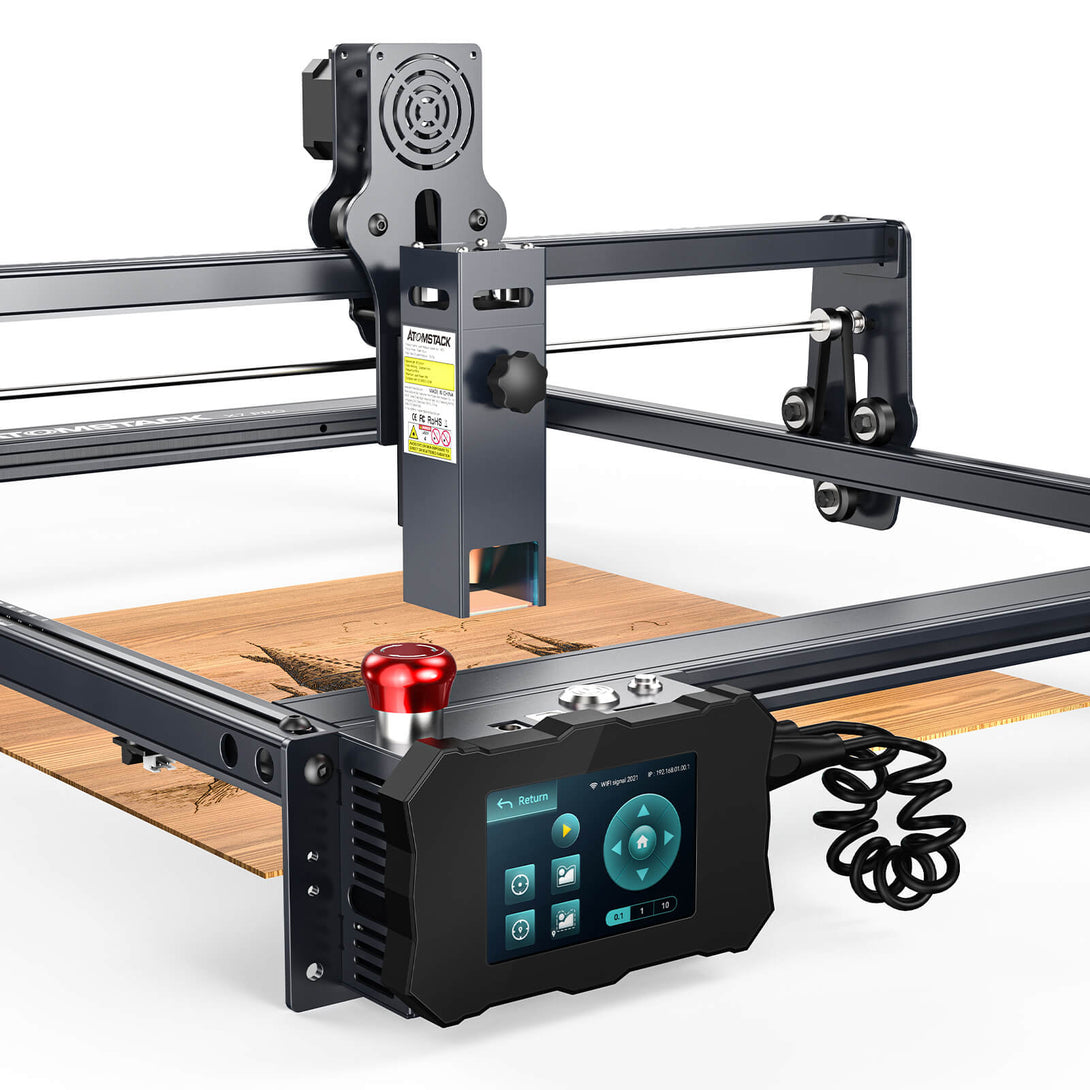

9. Support offline engraving: X7 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

10. The new laser is equipped with a horizontal gyroscope: which stops working immediately when it is tilted to ensure your safety

11. The laser sintering temperature is up to 1200℃

12. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

13. Stopper: Yes

14. Reset switch: Yes

15. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

Product Information:

Item model number: ATOMSTACK X7 PRO
Working area: 410*400mm
Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Power: 50W
Laser Output Power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system; LightBurn, supports Windows/Mac OS/Linux
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE, FCC, RoHS, FDA, PSE

X7 Pro LASER ENGRAVER PACKAGE:

1 × Mounting screw
1× Tool kit
4× Foot pad foam
1× Film
3× Acrylic sheet
3 × Wood chips
10× Wire tie
1× Desiccant
1× Brush
1× Clean cloth
1× Card reader
1× TF card
1× Power adapter
1× Instruction
1× Data line
1× Touch screen components
1× HDMI cable
1× Laser module
1× Cutting pad
1× X axis assembly
1× Y axis left profile
1× Y axis right profile
1× Profile on the base
1× Under the base profile
3× Foot bracket

Join in the Atomstack X7 Pro User Group:

https://www.facebook.com/groups/965237984337949

Note:

- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
